Trailer Hitch 65068 Licence Plat Modification

Written by Hitchweb Team
Tuesday, May 26, 2015 — No Comments Yet

On trailer hitch #65068 can you confirm if the receiver will stick out past the license plate once it is relocated?

As per technical support at Cequent Towing Products, the receiver will stick out past the licence plate.

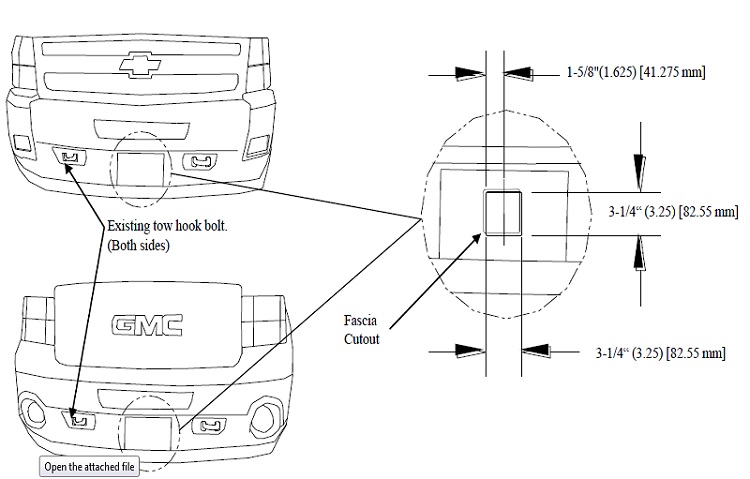

65068 trailer hitch image

bumper relocation on 65068 trailer hitch

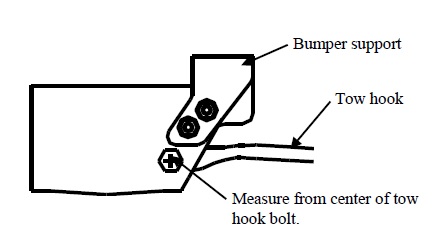

1. Measure from the tow hook bolt center to level ground.

2. Subtract 3-5/8”(3.625)[92mm] from step 1. This is the distance from level ground to bottom of fascia cutout.

3. Mark the location of the bottom of fascia cutout on front of fascia.

4. Measure 3-1/4” up from the bottom of fascia cut. This is the location of the top of fascia cutout.

5. Locate the center of the fascia from left to right and mark 1-5/8” each side. ( 3-1/4” square)

6. Drill (4) 3/8” hole in corners.

7. Carefully cut the 3-1/4” hole from the fascia.



CLICK ON THE LINK TO VIEW THE INSTALLATION INSTRUCTIONS FOR TRAILER HITCH #65068
