How To Measure Wheel Bolts

Written by Hitchweb Team
Wednesday, January 16, 2013 — 2 Comments

I am trying to pick a Wheel Bolt and Wheel Stud for my trailer hub, how do I choose the correct measurements?

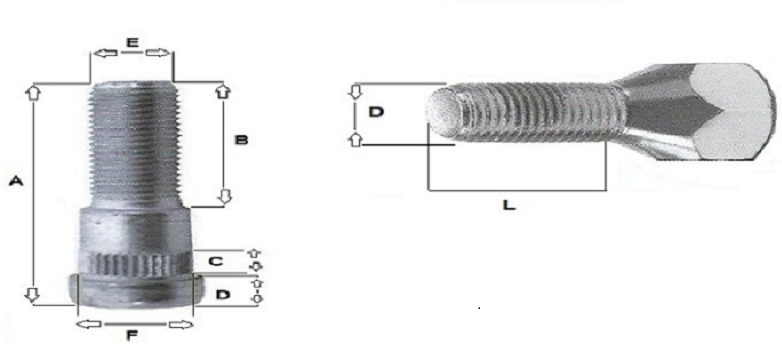

The below diagram will show you exactly how to measure Wheel Studs and Wheel Bolts:

Wheel Stud

The measurements are as follows:

A: Stud Length
B: Thread Length
C: Spline Length
D: Base Length
E: Thread Diameter
F: Spline Diameter

Wheel Bolt

The measurements are as follows:

D = Diamater
L = Length

How To Measure Wheel Bolts

Posted in Trailer Parts

Comments

Hitchweb Team

Wednesday, February 24, 2016

Unfortunately I do not see those sizes listed. The closest measurement we have is part #007-246-00 A:1.80" B: 1.19" C: 0.26" D: 0.16" E: 1/2" F: 0.54"

David

Wednesday, February 24, 2016

looking for M12 1.5 wheel studs A.1.828 B 1.358 C .319 D .171 E .468
